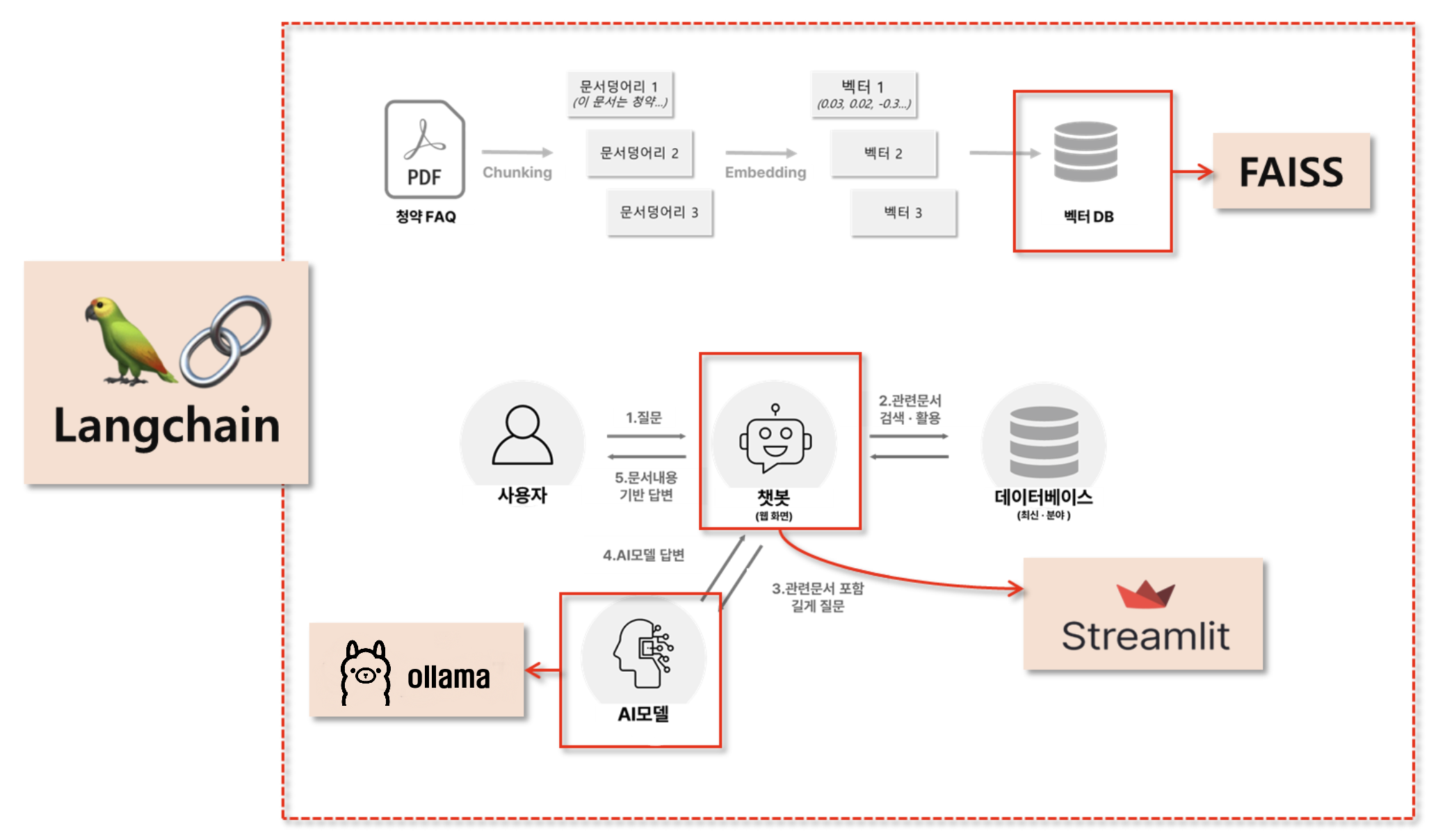

주택 청약 FAQ 챗봇
1. 환경설정
requirements.txt
streamlit
langchain
faiss-cpu
openai
pymupdf
langchain-openai
langchain-community
pip install -r requirements.txt
2. 코드 작성
.env
OPENAI_API_KEY=OPENAI_API_KEY
chatbot_ollama.py
## streamlit 관련 모듈 불러오기
import streamlit as st
from streamlit.runtime.uploaded_file_manager import UploadedFile
## LLM 모델
from langchain_ollama import OllamaEmbeddings, OllamaLLM
from langchain_openai import ChatOpenAI, OpenAIEmbeddings
from langchain_core.documents.base import Document
from langchain.text_splitter import RecursiveCharacterTextSplitter
from langchain_community.vectorstores import FAISS
from langchain.prompts import PromptTemplate
from langchain_core.runnables import Runnable
from langchain.schema.output_parser import StrOutputParser
from langchain_community.document_loaders import PyMuPDFLoader
from typing import List
import os
import fitz # PyMuPDF
import re
from tqdm import tqdm # 진행 상태 보기용
## 환경변수 불러오기
from dotenv import load_dotenv,dotenv_values
load_dotenv()
# Ollama 서버 URL
ollama_url = "http://127.0.0.1:11434" # 로컬에서 실행 중인 서버의 URL과 포트
lmstudio_url = "http://127.0.0.1:1234/v1"
############## 1단계 : PDF 문서를 벡터DB에 저장하는 함수들 ##############
## 1: 임시폴더에 파일 저장
def save_uploadedfile(uploadedfile: UploadedFile) -> str :
temp_dir = "PDF_임시폴더"
if not os.path.exists(temp_dir):
os.makedirs(temp_dir)
file_path = os.path.join(temp_dir, uploadedfile.name)
with open(file_path, "wb") as f:
f.write(uploadedfile.read())
return file_path
## 2: 저장된 PDF 파일을 Document로 변환
def pdf_to_documents(pdf_path:str) -> List[Document]:
documents = []
loader = PyMuPDFLoader(pdf_path)
doc = loader.load()
for d in doc:
d.metadata['file_path'] = pdf_path
documents.extend(doc)
return documents
## 3: Document를 더 작은 document로 변환
def chunk_documents(documents: List[Document]) -> List[Document]:
text_splitter = RecursiveCharacterTextSplitter(chunk_size=800, chunk_overlap=100)
return text_splitter.split_documents(documents)
## 4: Document를 벡터DB로 저장
# def save_to_vector_store(documents: List[Document]) -> None:
# # embeddings = OpenAIEmbeddings(model="text-embedding-3-small")
# # embeddings = OllamaEmbeddings( model="nomic-embed-text", base_url=ollama_url)
# embeddings = OpenAIEmbeddings(model="text-embedding-nomic-embed-text-v1", base_url=lmstudio_url, api_key="dummy")
# vector_store = FAISS.from_documents(documents, embedding=embeddings)
# vector_store.save_local("faiss_index")
def save_to_vector_store(documents: List[Document]) -> None:
# embeddings = OpenAIEmbeddings(model="text-embedding-3-small")
embeddings = OllamaEmbeddings( model="nomic-embed-text", base_url=ollama_url)
# embeddings = OpenAIEmbeddings(model="text-embedding-nomic-embed-text-v1", base_url=lmstudio_url, api_key="dummy" )
# 문서들을 임베딩 전에 작게 나눠서 처리
batch_size = 50
all_embeddings = []
for i in tqdm(range(0, len(documents), batch_size), desc="Embedding 문서"):
batch = documents[i:i+batch_size]
try:
vector_store = FAISS.from_documents(batch, embedding=embeddings)
if i == 0:
vector_store.save_local("faiss_index")
else:
vector_store.merge_from(vector_store)
except Exception as e:
print(f"{i}번째 배치에서 오류 발생: {e}")
print("✅ 벡터스토어 저장 완료")
############## 2단계 : RAG 기능 구현과 관련된 함수들 ##############
## 사용자 질문에 대한 RAG 처리
@st.cache_data
def process_question(user_question):
# embeddings = OpenAIEmbeddings(model="text-embedding-3-small")
embeddings = OllamaEmbeddings( model="nomic-embed-text",base_url=ollama_url)
# embeddings = OpenAIEmbeddings(model="text-embedding-nomic-embed-text-v1", base_url=lmstudio_url, api_key="dummy")
## 벡터 DB 호출
new_db = FAISS.load_local("faiss_index", embeddings, allow_dangerous_deserialization=True)
## 관련 문서 3개를 호출하는 Retriever 생성
retriever = new_db.as_retriever(search_kwargs={"k": 3})
## 사용자 질문을 기반으로 관련문서 3개 검색
retrieve_docs : List[Document] = retriever.invoke(user_question)
## RAG 체인 선언
chain = get_rag_chain()
## 질문과 문맥을 넣어서 체인 결과 호출
response = chain.invoke({"question": user_question, "context": retrieve_docs})
return response, retrieve_docs
def get_rag_chain() -> Runnable:
template = """
다음의 컨텍스트를 활용해서 질문에 답변해줘
- 질문에 대한 응답을 해줘
- 간결하게 5줄 이내로 해줘
- 곧바로 응답결과를 말해줘
컨텍스트 : {context}
질문: {question}
응답:"""
custom_rag_prompt = PromptTemplate.from_template(template)
# model = ChatOpenAI(model="gpt-4o-mini")
# model = OllamaLLM(model="llama3.1:latest", base_url=ollama_url)
model = ChatOpenAI(model="exaone-3.5-2.4b-instruct", base_url=lmstudio_url, api_key="dummy")
return custom_rag_prompt | model | StrOutputParser()
############## 3단계 : 응답결과와 문서를 함께 보도록 도와주는 함수 ##############
@st.cache_data(show_spinner=False)
def convert_pdf_to_images(pdf_path: str, dpi: int = 250) -> List[str]:
doc = fitz.open(pdf_path) # 문서 열기
image_paths = []
# 이미지 저장용 폴더 생성
output_folder = "PDF_이미지"
if not os.path.exists(output_folder):
os.makedirs(output_folder)
for page_num in range(len(doc)): # 각 페이지를 순회
page = doc.load_page(page_num) # 페이지 로드
zoom = dpi / 72 # 72이 디폴트 DPI
mat = fitz.Matrix(zoom, zoom)
pix = page.get_pixmap(matrix=mat) # type: ignore
image_path = os.path.join(output_folder, f"page_{page_num + 1}.png") # 페이지 이미지 저장 page_1.png, page_2.png, etc.
pix.save(image_path) # PNG 형태로 저장
image_paths.append(image_path) # 경로를 저장
return image_paths
def display_pdf_page(image_path: str, page_number: int) -> None:
image_bytes = open(image_path, "rb").read() # 파일에서 이미지 인식
st.image(image_bytes, caption=f"Page {page_number}", output_format="PNG", width=600)
def natural_sort_key(s):
return [int(text) if text.isdigit() else text for text in re.split(r'(\d+)', s)]
def main():
st.set_page_config("청약 FAQ 챗봇", layout="wide")
left_column, right_column = st.columns([1, 1])
with left_column:
st.header("청약 FAQ 챗봇")
pdf_doc = st.file_uploader("PDF Uploader", type="pdf")
button = st.button("PDF 업로드하기")
if pdf_doc and button:
with st.spinner("PDF문서 저장중"):
pdf_path = save_uploadedfile(pdf_doc)
pdf_document = pdf_to_documents(pdf_path) #
smaller_documents = chunk_documents(pdf_document)
save_to_vector_store(smaller_documents)
# (3단계) PDF를 이미지로 변환해서 세션 상태로 임시 저장
with st.spinner("PDF 페이지를 이미지로 변환중"):
images = convert_pdf_to_images(pdf_path)
st.session_state.images = images
user_question = st.text_input("PDF 문서에 대해서 질문해 주세요",
placeholder="무순위 청약 시에도 부부 중복신청이 가능한가요?")
if user_question:
response, context = process_question(user_question)
st.write(response)
for document in context:
with st.expander("관련 문서"):
st.write(document.page_content)
file_path = document.metadata.get('source', '')
page_number = document.metadata.get('page', 0) + 1
button_key = f"link_{file_path}_{page_number}"
reference_button = st.button(f"🔎 {os.path.basename(file_path)} pg.{page_number}", key=button_key)
if reference_button:
st.session_state.page_number = str(page_number)
with right_column:
# page_number 호출
page_number = st.session_state.get('page_number')
if page_number:
page_number = int(page_number)
image_folder = "pdf_이미지"
images = sorted(os.listdir(image_folder), key=natural_sort_key)
print(images)
image_paths = [os.path.join(image_folder, image) for image in images]
print(page_number)
print(image_paths[page_number - 1])
display_pdf_page(image_paths[page_number - 1], page_number)
if __name__ == "__main__":
main()
3. 실행
streamlit run chatbot_ollama.py --server.port 8501
4. FAISS 데이터 확인
faiss_upload_viewer.py
import streamlit as st
import pandas as pd
import numpy as np
from langchain_community.vectorstores import FAISS
from langchain_community.embeddings import OpenAIEmbeddings
from langchain_community.embeddings import OllamaEmbeddings
import tempfile
import os
# Set the page configuration (optional)
st.set_page_config(page_title="LangChain FAISS 색인 내용", layout="wide")
st.title("LangChain FAISS 색인 내용")
ollama_url = "http://127.0.0.1:11434"
# Add a file uploader for the individual FAISS index files
uploaded_files = st.file_uploader(
"'index.faiss'와 'index.pkl' 파일을 업로드하세요",
type=["faiss", "pkl"],
accept_multiple_files=True
)
if uploaded_files is not None and len(uploaded_files) > 0:
# Create a temporary directory to save the uploaded files
with tempfile.TemporaryDirectory() as tmpdirname:
# Initialize variables to store the paths of the uploaded files
index_faiss_path = None
index_pkl_path = None
# Process the uploaded files
for uploaded_file in uploaded_files:
# Save each file to the temporary directory
file_path = os.path.join(tmpdirname, uploaded_file.name)
with open(file_path, 'wb') as f:
f.write(uploaded_file.getbuffer())
# Identify the file based on its name
if uploaded_file.name == 'index.faiss':
index_faiss_path = file_path
elif uploaded_file.name == 'index.pkl':
index_pkl_path = file_path
# Check if both required files have been uploaded
if index_faiss_path is None or index_pkl_path is None:
st.error("'index.faiss'와 'index.pkl' 파일을 모두 업로드해주세요.")
st.stop()
# Now, load the FAISS index from the temporary directory
# Since the files are saved in tmpdirname, we can use that as the base path
try:
vectorstore = FAISS.load_local(
tmpdirname,
# embeddings=OpenAIEmbeddings(model="text-embedding-3-small"),
embeddings = OllamaEmbeddings( model="nomic-embed-text",base_url=ollama_url),
allow_dangerous_deserialization=True
)
except Exception as e:
st.error(f"FAISS 색인 로드 실패: {e}")
st.stop()
# Proceed with processing and displaying the data
# Get the total number of vectors
n_vectors = vectorstore.index.ntotal
# Initialize lists to hold data
texts = []
metadatas = []
embeddings_str = []
# Function to convert embeddings to string with ellipsis, showing only the first 100 numbers
def embedding_to_str(embedding):
truncated_embedding = embedding[:100] # Take the first 100 numbers
embedding_str = ", ".join("{:.3f}".format(num) for num in truncated_embedding)
return "[{}...]".format(embedding_str)
# Iterate over the indices
for i in range(n_vectors):
# Get the document ID
doc_id = vectorstore.index_to_docstore_id[i]
# Retrieve the document
doc = vectorstore.docstore.search(doc_id)
# Append text and metadata
texts.append(doc.page_content)
metadatas.append(doc.metadata)
# Reconstruct the embedding vector
embedding_vector = vectorstore.index.reconstruct(i)
# Convert embedding to string with ellipsis
embeddings_str.append(embedding_to_str(embedding_vector))
# Create the DataFrame
df = pd.DataFrame({
'text': texts,
'metadata': metadatas,
'embeddings': embeddings_str
})
# Function to convert DataFrame to HTML with code blocks in 'metadata' column
def df_to_html_with_code(df):
html = '''
<html>
<head>
<style>
table {
width: 100%;
border-collapse: collapse;
table-layout: fixed;
word-wrap: break-word;
}
th, td {
text-align: left;
vertical-align: top;
padding: 8px;
border-bottom: 1px solid #ddd;
word-wrap: break-word;
}
th {
background-color: #f2f2f2;
}
pre {
background-color: #f0f0f0;
padding: 8px;
margin: 0;
white-space: pre-wrap; /* Wrap long lines */
word-wrap: break-word; /* Break long words */
font-size: 0.9em;
}
code {
font-family: Consolas, 'Courier New', monospace;
}
.cell-content {
max-height: 200px;
overflow: auto;
}
</style>
</head>
<body>
<table>
'''
# Add table header
html += '<tr>'
for column in df.columns:
html += f'<th>{column}</th>'
html += '</tr>'
# Add table rows
for _, row in df.iterrows():
html += '<tr>'
for column in df.columns:
cell_value = row[column]
if column == 'metadata':
# Convert metadata to JSON string with indentation
import json
metadata_str = json.dumps(cell_value, indent=2, ensure_ascii=False)
# Wrap in code block
cell_html = f'''
<div class="cell-content">
<pre><code>{metadata_str}</code></pre>
</div>
'''
else:
cell_html = f'''
<div class="cell-content">
{cell_value}
</div>
'''
html += f'<td>{cell_html}</td>'
html += '</tr>'
html += '''
</table>
</body>
</html>
'''
return html
# Convert DataFrame to HTML
html_table = df_to_html_with_code(df)
# Display the HTML table using st.components.v1.html()
st.components.v1.html(html_table, height=800, scrolling=True)
# Temporary directory and its contents are cleaned up here
else:
st.info("FAISS 색인 내용을 보려면 'index.faiss'와 'index.pkl' 파일을 모두 업로드해주세요.")
streamlit run faiss_upload_viewer
